Equipment of Moosbach-Rheinheimer Railway

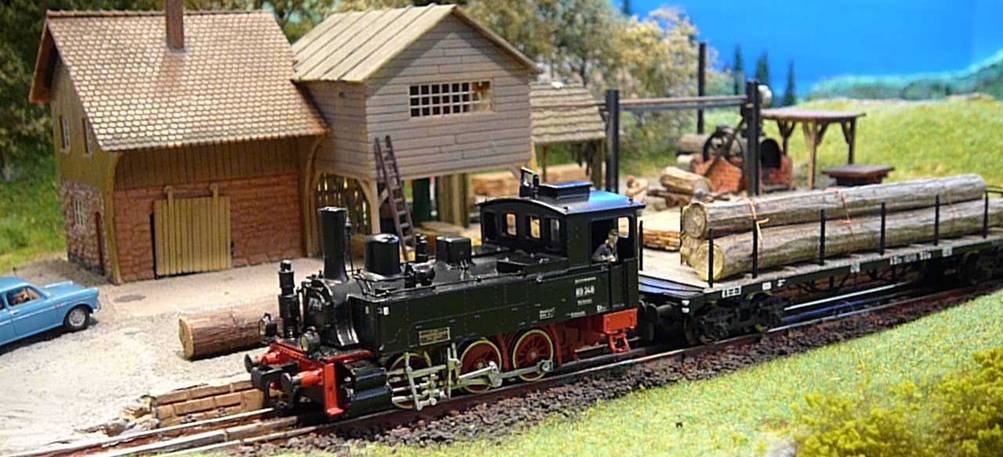

The new Engine:



Made in kitbashing with an old Rai-Mo Kit and a Trix Express T3 frame, the new württembergische T3 is now running on the Moosbach-Rheinheimer Railway



Fakts:



· Württembergische T3 / BR 89

· Rai-Mo Kit 200 005

· Frame and wheles of a Trix-Express 2214

· Lenght: 101 mm

· Wheigt 224g

· 4 Haftreifen

· Minitrix Motor

· LED Lamps (Selfmade)

· Lenz DCC Decoder in the boiler

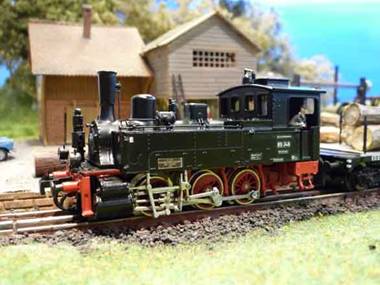

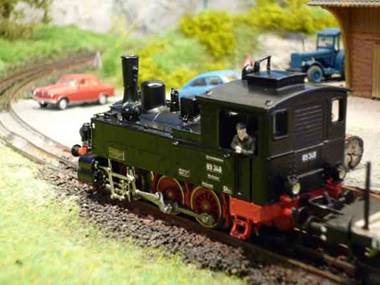

New Engine

Württembergische T3 for Trix-Express

All pictures from 2009 © H. Fengel

See a movie about the new engine of the Moosbach-Rheinheimer Railway,

a württembergische T3.

Technical:



The frame and body of the Rai-Mo T3 can not clickt together like the Trix T3, which was the first HO model available in plastic „click-technology“.

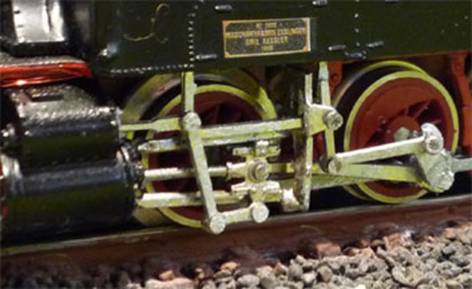

The steam cylinders in the front and the back frame are clued together as independent components holding the frame together.

Gearbox and engine are mounted like on the original Trix construction.



The Lenz DCC Decoder is glued in front of the gear box. The resistors and diodes are for the front and back lights with  „Golden White“ SMD LEDs.

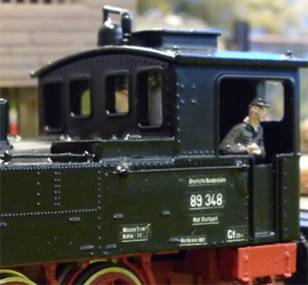

The engine cab got also a light and two „operators“



Frame and body will be hold together with 1 screw in the front and two in the back

Technical:
end of train!
